12HA350 Powered Speaker System
Power in your hands
A perfect match; leading edge amplifier technology matched to custom built transducers and cabinet geometry, all harmonized to bring you unparallel performance and value.
This is a powered system with real power. A brand new production line builds a brand new compact amplifier. ACM has a lot of experience with amplifiers. It's one thing to have a good design but it's another to build it for the right price and maintain light weight, reliability and easy service. ACM has built a new state of the art production facility to develop and assemble the amplifiers for the 12HA350 and the product stands head and shoulders above anything within a mile of its class.
A clever combination of surface mount input stage and discrete output reduces size and weight without compromising reliability or technical service should it be necessary. The safety of heavy duty components is augmented by highly developed multiband limiting and dual buffered inputs make the 12HA350 an ideal and flexible choice for both general audio and musicians alike.
An ideal multipurpose system
A user rotatable horn flare and "monitor wedge" side profiles make the 12HA350 an effective tool for almost any general audio application in the hands of a live sound professional. Weather in vertical or horizontal configuration, the high end horn can be directed to where it's needed. Multiple extra strong rigging points have been provided to accommodate a number of rigging or flying options.
ACM does not manufacture disposable "throw away" products. They are built to be used and abused by professionals and beginners on the hard road of Rock and DJ reality. With quality high powered components, advanced electronics and sturdy box design, the 12H300 will outlast even the toughest user environment yet still deliver audio reproduction more associated with fragile studio style systems.
Best of all, it's bang for buck; you can be an ACM owner without mortgaging your future.
Key Features
- High Impact Molded Polypropylene Enclosure
- 12L300A4 12 LF Transducer
- 1.75" Voice Coil, 1" Exit Titanium Compression Driver
- 5 Integral Suspension Points
- Complete Mounting Solutions
- Smooth Response With High Power Handling Capacity (Long Term/Max), 118dB/124dB
- 80 x 60 Coverage Pattern
Specifications
| Freq. Range (-10dB): | 40Hz~20kHz |
| Freq. Response (-3dB): | 50Hz~18kHz |
| Rec.Hipass Frequency: | 30Hz |
| Max Calculated SPL: | 124dB |
| Amplifier Power HF: | 50W |
| Amplifier Power LF: | 300W |
| LF Transducer: | 12L300A4 |
| HF Transducer: | 25H44A8 |
| Crossover Frequency: | 2.2kHz |
| Loop/Mix Out: | XLR/M, Balanced |
| AC Input: | 110/220V, AC, 50/60Hz, 300 Watts |
| Dim (HxWxD): | 615mm x 416mm x 356mm |
| Net Weight: | 25Kg |
| Shipping Weight: | 28Kg |
| Horizontal Coverage: | 80º |
| Vertical Coverage: | 60º |

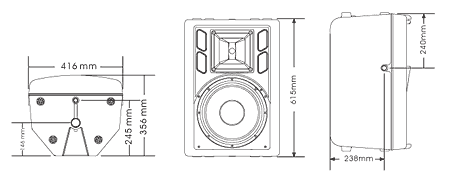

Dimensions
