ACM SRP118SE
Description
SRP 118SE is a compact, active subwoofer system. Through the use of proprietary amplifier technology, precision manufactured woofer technology and the innovative implementation of a high efficiency chamber design, SRP 118SE deliver tight, fast, controlled bass response. Optional balanced and unbalanced signal input, Adjustable 80 to 200 Hz low pass filter. OFF/80Hz/125Hz high pass filter, phase reverted switch available, Built-in power limit protection ciruit.
Technical Specifications
| Freq. Range (-10dB): | 40Hz~220Hz |
| Freq. Response (-3dB): | 48Hz~200Hz |
| Max Calculated SPL: | 130dB |
| Amplifier Power: | 600W |
| LF Transducer: | 18”/100mm |
| Crossover Frequency: | 80Hz~200Hz Adjustable |
| Connector: | Line XLR/RCA |
| Output Connector: | Pre output XLR |
| Input Impedance: | Balance 20k/nobalance 47k |
| AC Input: | AC115V/230V 50Hz/60Hz |
| Dim (HxWxD): | 535mm×645mm×680mm |
| Net Weight: | 56Kg |
| Shipping Weight: | 59Kg |

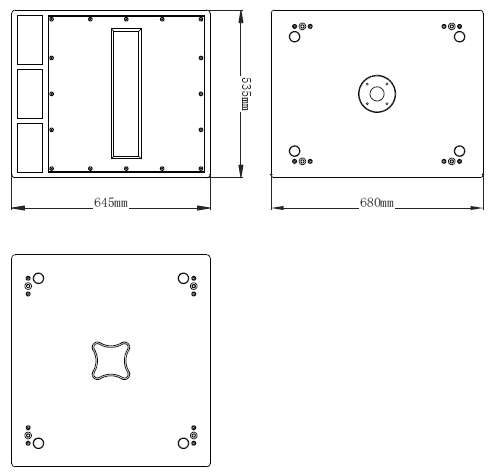

Dimensions
