ACM subwoofers are legendary the world over for their extended low frequency response and high-impact "punch." They provide massive output yet are extremely musical, due in large part to rigid enclosures and advanced transducer designs. Most models use powerful drivers.
Integral pole available to support one mid-high or full range loudspeaker.

Technical Specifications

Freq. Range (-10dB): 40Hz~220Hz
Freq. Response (-3dB): 48Hz~200Hz
Axial Sensitivity: 99dB(1W/1m)
Max Calculated SPL: 133dB
Rated System Power: 650W Continuous 2600W Peak
LF Transducer: 18”/100mm
Nominal Impedance: 8 ohm
Connector: 2 x NL4 Speakon
Dim (HxWxD): 535mm x 645mm x 620mm
Net Weight: 40.5Kg
Shipping Weight: 44Kg

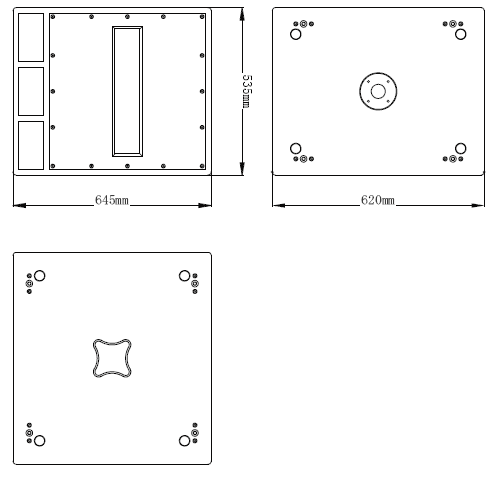

SRP118S dimentions

SRP118S Front & side
