ACM subwoofers are legendary the world over for their extended low frequency response and high-impact "punch." They provide massive output yet are extremely musical, due in large part to rigid enclosures and advanced transducer designs. Most models use powerful, direct-radiating drivers.Integral pole available to support one mid-high or full range loudspeaker.

Technical Specifications

Freq. Range (-10dB): 32Hz~2000Hz
Freq. Response (-3dB): 40Hz~2000Hz
Max Calculated SPL: 137dB
Axial Sensitivity: 100dB(1W/1m)
Rated System Power: 1200W Continuous 4800W Peak
LF Transducer: 18”/100mm
Nominal Impedance: 4 Ohms
Connector: 2 x NL4 Speakon
Dim (HxWxD): 1105mm x 635mm x 720mm
Net Weight: 76Kg
Shipping Weight: 82.5Kg

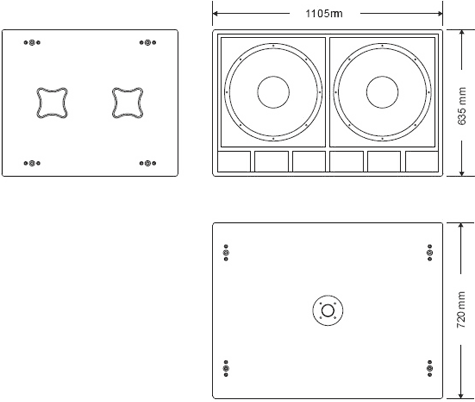

SRL218S dimentions

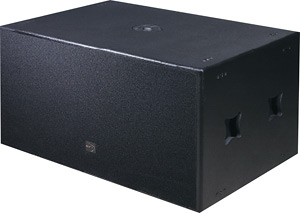

SRL218S Front and side
