ACM subwoofers are legendary the world over for their extended low frequency response and high-impact "punch." They provide massive output yet are extremely musical, due in large part to rigid enclosures and advanced transducer designs. Most models use powerful, direct-radiating drivers.Integral pole available to support one mid-high or full range loudspeaker.

Technical Specifications

Freq. Range (-10dB): 35Hz~800Hz
Freq. Response (-3dB): 45Hz~1000Hz
Rec.Hipass Frequency: 25Hz
Max Calculated SPL: 135dB
Axial Sensitivity: 99dB(1W/1m)
Rated System Power: 1000W Continuous 4000W Peak
LF Transducer: 2 x 15"/100mm
Nominal Impedance: 4 Ohms
Connector: 2 x NL4 Speakon
Dim (HxWxD): 585mm x 915mm 700mm
Net Weight: 91Kg
Shipping Weight: 96Kg

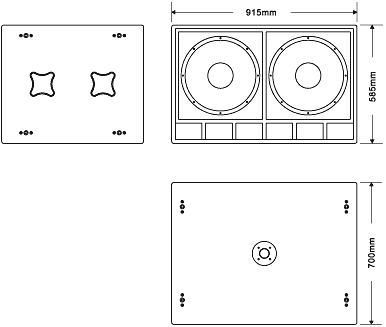

SRL215S dimentions

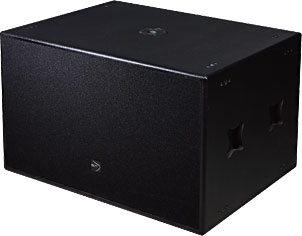

SRL215S Front and side
