ACM SRL15
Description
The SRL Active and Passive Series from 10",12" to 15" offer truly professional sound to musicians and DJs working small to medium venues live performance. The full range 2-way systems function either as mains or as monitors by 45 or 60 degree and can be mounted on pole stands.The portable, full range loudspeakers are optimized for use with the ACM subwoofer, which also serves as a pole mount base. Additionally, any ACM subwoofer will complement the SRL Series. The full range models include threaded mounting points for installation applications.
Technical Specifications
| Freq. Range (-10dB): | 45Hz~20kHz |
| Freq. Response (-3dB): | 50Hz~20kHz |
| Rec.Hipass Frequency: | 25Hz |
| Max Calculated SPL: | 130dB |
| Axial Sensitivity: | 98dB(1W/1m) |
| Rated System Power: | 350W Continuous 1400W Peak |
| LF Transducer: | 15"/75mm |
| HF Transducer: | 1"/45mm |
| Crossover Frequency: | 1.8kHz |
| Nominal Impedance: | 8 Ohms |
| Connector: | 2 x NL4 Speakon |
| Dim (HxWxD): | 740mm x 485mm 495mm |
| Net Weight: | 38Kg |
| Shipping Weight: | 41Kg |
| Horizontal Coverage: | 90º |
| Vertical Coverage: | 60º |

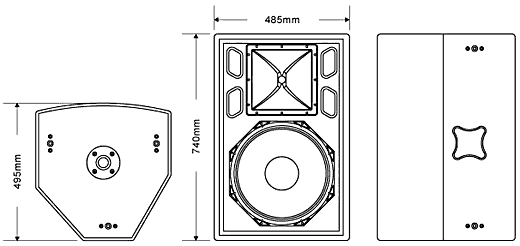

Dimensions
