ACM PS3-1000
Description

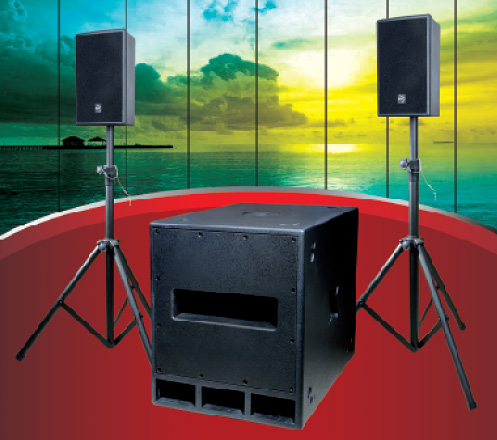

PS IMPACT consists of two satellites and a subwoofer equipped with a power amp and all the electronics required to drive the bass bin and satellite.The electronic circuitry protects it from overloads and makes this system very easy to operate.
An ACM AUDIO active system is so much more than merely a pair of active cabinets on tripods; it is an end-to-end sound-reinforcement solution consisting of subwoofer, satellites and meticulously matched circuitry.
Specifications
Subwoofer
| Frequency response+/- 3dB | 40 Hz - 80-200Hz |
| Axial sensitivity 1W@lm | 99dB |
| Maximum SPL @lm | 130dB |
| Subwoofer amplifie | lx 600 W RMS / Class AB |
| Sat & Mid/High Unit amp | 200 W RMS / Class AB |
| Connections | 2x XLR in, 2x lack MIC IN 2xXLR OUT, 2x Speokon® Satellite out |
| Subwoofer | lx 15” |
| Operating Temperature Range | -10° C to 550 C(14° F to 13° F) |
| Height | 21.4in/545mm |
| Width | 17.7in/450mm |
| Depth | 25in/635mm |
| Weight | 106. 71b/48.5kg |
Satellites
| Power-handling nominal | 150 W RMS (80 Hz/125Hz, low cut) |
| Freq. Response | +1- 3dB 80 Hz/125 Hz-20 kHz |
| Axial sensitivity 1W@lm | 95dB |
| Maximum SPL @lm | 120dB |
| Nominal impedance | 8 ohms |
| Midrange woofer | lx 8 |
| Tweeter | Driver 1” |
| Directivity | 9Q0 x60° |
| Connections | lx Speakon ® NL 4 |
| Height | 16.5in/420mm |
| Width | 10.4in/265mm |
| Depth | 9.4in/240mm |
| Weight | 211b/9.5kg |
