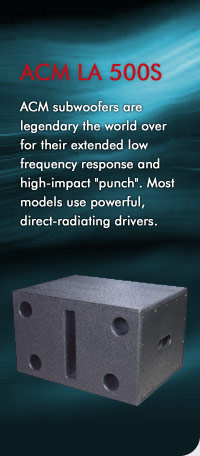

ACM LA 500S Subwoofer


ACM subwoofers are legendary the world over for their extended low frequency response and high-impact "punch." They provide massive output yet are extremely musical, due in large part to rigid enclosures and advanced transducer designs. Most models use powerful, direct-radiating drivers. Integral pole available to support one mid-high or full range loudspeaker.

Technical Specifications

Freq.Range(-10dB): 42Hz~2000Hz
Freq.Response(-3dB): 50Hz~2000Hz
Axial Sensitivity: 96dB(1W/1m)
Max Calchlated SPL 129dB
Rated System Power: 500W Continuous 2000W Peak
LF Transducer: 15”/100mm
Nominal Impedance: 8 Ohms
Connector: 2 x NL4 Speakon
Dim (H x W x D): 450mm x 575mm x 635mm
Net Weight: 34.5Kg
Shipping Weight: 37Kg

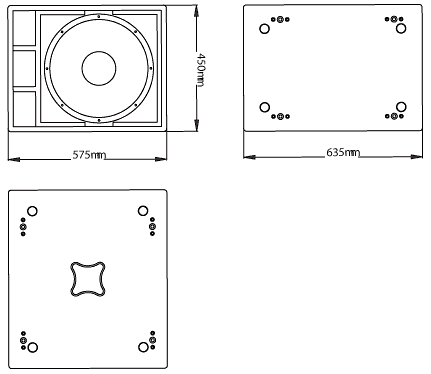

ACM LA500S Dimensions

ACM LA500S Subwoofer
