ACM SRP 212S
Our SRP compact subwoofers from 15'',18'',double 12'',double 15'' to double 18'' display all the features expected from a product range with such a distinguished pedigree. Made from high density plywood painted in a hardwearing painted ideally suited for both mobile and fixed installation application.
Perfect linear response, big dynamic, low distortion and powerful drivers with proprietary custom made voice coil are loaded. Additionally, SRP series subwoofer will complement with SRP series full range speaker. All cabinets in SRP series subwoofer are supplied with 8 strength brackets inside the cabinet and 12Xm10 threaded mounting points to accommodate a number of mounting options.
Technical Specifications
| Freq. Range (-10dB): | 35Hz~200Hz |
| Freq. Response (-3dB): | 45Hz~170Hz |
| Rec.Hipass Frequency: | 20Hz |
| Axial Sensitivity: | 101dB (1W/1m) |
| Max Calculated SPL: | 133dB |
| Rated System Power: | 800W Continuous 1600W Peak |
| LF Transducer: | 12''/75mm |
| Nominal Impedance: | 4 ohms |
| Connector: | 2xNL4 Speakon |
| Dim(HxWxD): | 700mmx510mmx620mm |
| Net Weight: | 47.5Kg |
| Shipping Weight: | 50g |

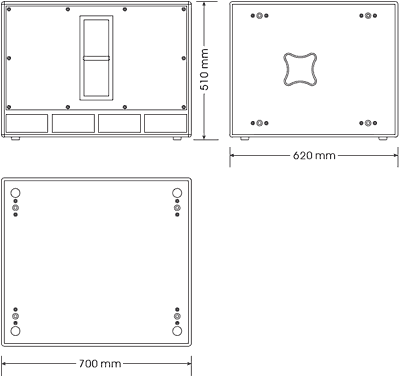

Dimensions
