ACM LA 500SE

LA 500SE

LA 500SE is a compact, active subwoofer system. Through the use of proprietary amplifier technology, precision manufactured woofer technology and the innovative implementation of a high efficiency chamber design, LA 500SE deliver tight, fast, controlled bass response.

Optional balanced and unbalanced signal input, Adjustable 80 to 200 Hz low pass filter. OFF/80Hz/125Hz high pass filter, phase reverted switch available, Built-in power limit protection ciruit.

Technical Specifications

Freq. Range (-10dB):  45Hz~220Hz
Max Calculated SPL (1m):  126dB
Rec. Hi pass Frequency:  20Hz
Amplifier Power:  600W
Dispersion (HXV):  All direction
LF Transducer:  15”/100mm
Crossover Frequency:  80~120Hz Adjustable
Connector:  RCA/XLR, Batanced
Input Impedance (balanced/unbalance):  20K ohm/47K ohm
AC Current 50/60Hz:  110/220V, 50/60Hz
Dim (W×H×D)  450×545×635mm
Net Weight:  45Kg
Shipping Weight:  48Kg

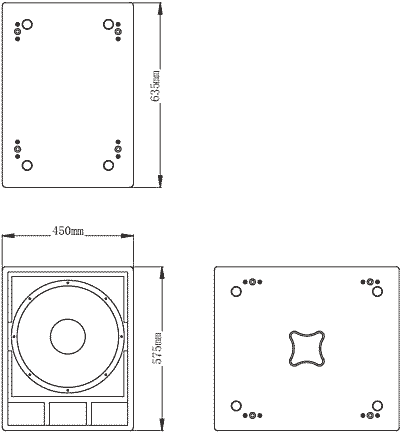

Dimensions

ACM LA 500SE Dimensions
