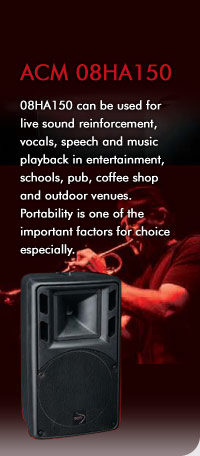

ACM 08HA150
Key Features
- High Impact Molded Polypropylene Enclosure
- 08L120-41 8 LF Transducer
- 1.5" Voice Coil, 1" Exit Aluminium Compression Driver
- 5 Integral Suspension Points
- Complete Mounting Solutions
- Smooth Response With High Power Handling Capacity (Long Term/Max), 114dB/117dB
- 90 x 60 Coverage Pattern
Technical Specifications
| Freq. Range (-10dB): | 60Hz~20kHz |
| Freq. Response (-3dB): | 75Hz~20kHz |
| Rec.Hipass Frequency: | 50Hz |
| Max Calculated SPL: | 117dB |
| Amplifier Power LF: | 100W |
| Amplifier Power HF: | 50W |
| LF Transducer: | 08L120-41 |
| HF Transducer: | 25H34-82 |
| Crossover Frequency: | 3.5kHz |
| Loop/Mix Out: | XLR/M,Balanced |
| AC Input: | 110/220 V, AC, 50/60Hz, 180 Watts |
| Dim (HxWxD): | 435mm x 255mm x 245mm |
| Net Weight: | 9.5Kg |
| Shipping Weight: | 11Kg |
| Horizontal Coverage: | 90º |
| Vertical Coverage: | 60º |

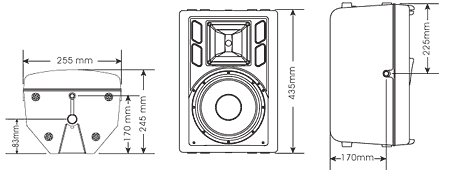

Dimensions
