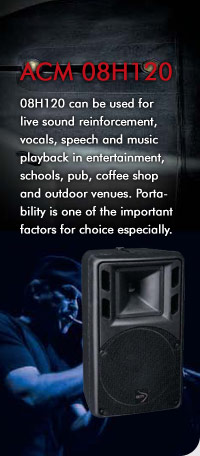

ACM 08H120
 |
 |
Key Features
- High Impact Molded Polypropylene Enclosure
- 08L120-82 8 LF Transducer
- 1.5" Voice Coil, 1" Exit Aluminium Compression Driver
- 5 Integral Suspension Points
- Complete Mounting Solutions
- Smooth Response With High Power Handling Capacity (Continuous Program/RMS), 480W/120W
- 90 x 60 Coverage Pattern
Technical Specifications
| Freq. Range (-10dB): | 60Hz~20kHz |
| Freq. Response (-3dB): | 75Hz~20kHz |
| Rec.Hipass Frequency: | 50Hz |
| Axial Sensitivity: | 94dB(1W/1m) |
| Max Calculated SPL: | 120dB |
| Rated System Power: | 120W Continuous 480W Peak |
| LF Transducer: | 08L120-82 |
| HF Transducer: | 25H34-82 |
| Crossover Frequency: | 2.0kHz |
| Nominal Impedance: | 8 Ohms |
| Connector: | 2 x NL4 Speakon |
| Dim (HxWxD): | 435mm x 255mm x 245mm |
| Net Weight: | 8Kg |
| Shipping Weight: | 9Kg |
| Horizontal Coverage: | 90º |
| Vertical Coverage: | 60º |
Dimensions
