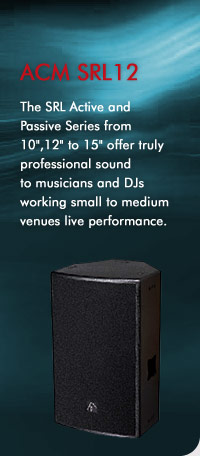

The SRL Active and Passive Series from 10", 12" to 15" offer truly professional sound to musicians and DJs working small to medium venues live performance. The full range 2-way systems function either as mains or as monitors by 45 or 60 degree and can be mounted on pole stands.The portable, full range loudspeakers are optimized for use with the ACM subwoofer, which also serves as a pole mount base. Additionally, any ACM subwoofer will complement the SRL Series. The full range models include threaded mounting points for installation applications.

Technical Specifications

Freq. Range (-10dB): 50Hz~20kHz
Freq. Response (-3dB): 60Hz~20kHz
Rec.Hipass Frequency: 25Hz
Max Calculated SPL: 128dB
Horizontal Coverage: 90º
Vertical Coverage: 60º
Rated System Power: 300W Continuous 1200W Peak
LF Transducer: 12"/75mm
HF Transducer: 1"/45mm
Crossover Frequency: 2.0kHz
Nominal Impedance: 8 Ohms
Connector: 2 x NL4 Speakon
AC Input: 110/220V, AC, 50/60Hz, 560Watts
Dim (HxWxD): 656mm x 405mm 415mm
Net Weight: 30Kg
Shipping Weight: 32Kg

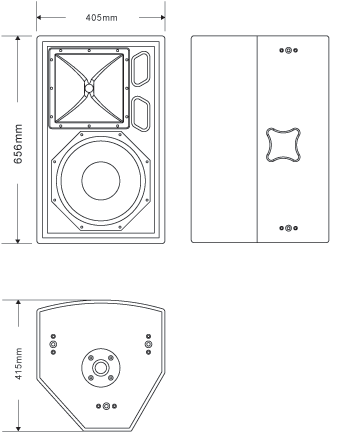

SRL12 dimentions

SRL12A Front and side
SRL12A Back
