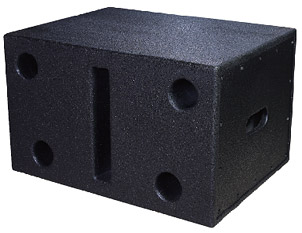

ACM LA350S Subwoofer


ACM subwoofers are legendary the world over for their extended low frequency response and high-impact "punch." They provide massive output yet are extremely musical, due in large part to rigid enclosures and advanced transducer designs. Most models use powerful, direct-radiating drivers. Integral pole available to support one mid-high or full range loudspeaker.

Technical Specifications

ACM LA350S Subwoofer
Freq.Range(-10dB): 40Hz~200Hz
Freq.Response(-3dB): 48Hz~160Hz
Rec.Hipass Frequency: 20Hz
Axial Sensitivity: 96dB(1W/1m)
Max Calchlated SPL 127dB
Rated System Power: 300W Continuous 1200W Peak
LF Transducer: 2 x 10"/50mm
Nominal Impedance: 4 Ohms
Connector: 2 x NL4 Speakon
Dim (H x W x D): 400mm x 650mm x 445mm
Net Weight: 32.5Kg
Shipping Weight: 35Kg

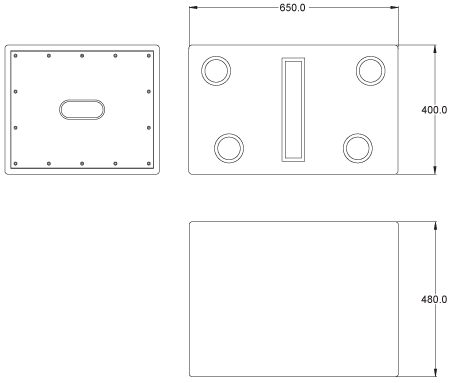

ACM LA350S Dimensions
