SRP 212S

Our SRP compact subwoofers from 15'',18'',double 12'',double 15'' to double 18'' display all the features expected from a product range with such a distinguished pedigree. Made from high density plywood painted in a hardwearing painted ideally suited for both mobile and fixed installation application.

Perfect linear response, big dynamic, low distortion and powerful drivers with proprietary custom made voice coil are loaded. Additionally, SRP series subwoofer will complement with SRP series full range speaker. All cabinets in SRP series subwoofer are supplied with 8 strength brackets inside the cabinet and 12Xm10 threaded mounting points to accommodate a number of mounting options.

Technical Specifications

Freq. Range (-10dB): 35Hz~200Hz
Freq. Response (-3dB): 45Hz~170Hz
Rec.Hipass Frequency: 20Hz
Axial Sensitivity: 101dB (1W/1m)
Max Calculated SPL: 133dB
Rated System Power: 800W Continuous 1600W Peak
LF Transducer: 12''/75mm
Nominal Impedance: 4 ohms
Connector: 2xNL4 Speakon
Dim(HxWxD): 700mmx510mmx620mm
Net Weight: 47.5Kg
Shipping Weight: 50g

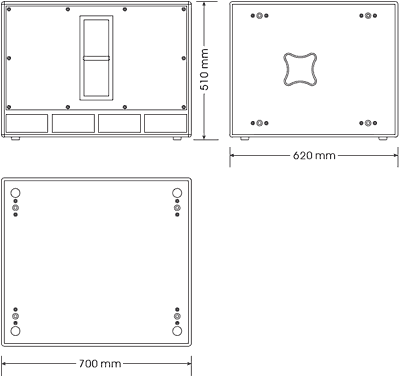

ACM SRP 212S Dimensions
